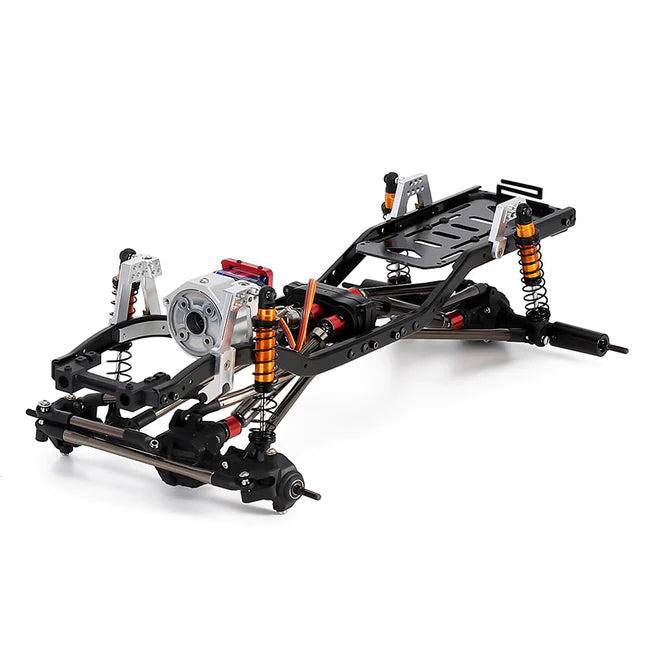

INJORA 313mm Wheelbase Chassis with Prefixal 2-Speed Transmission for SCX10 II 90046

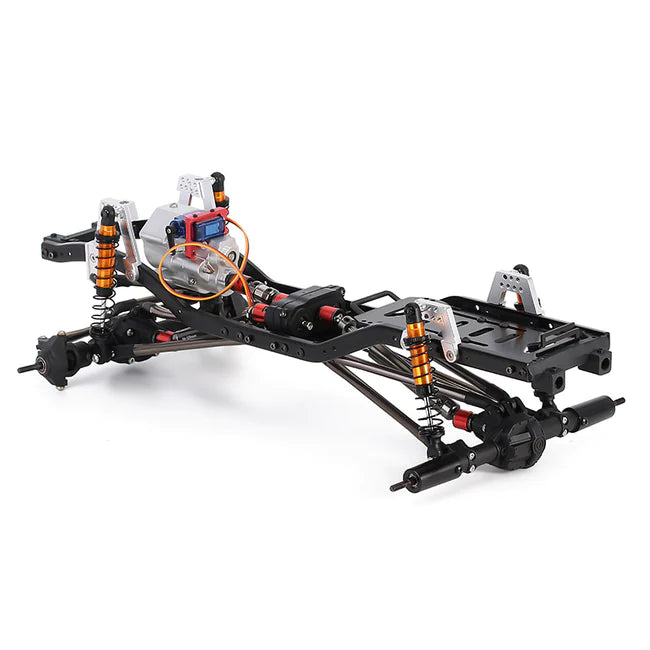

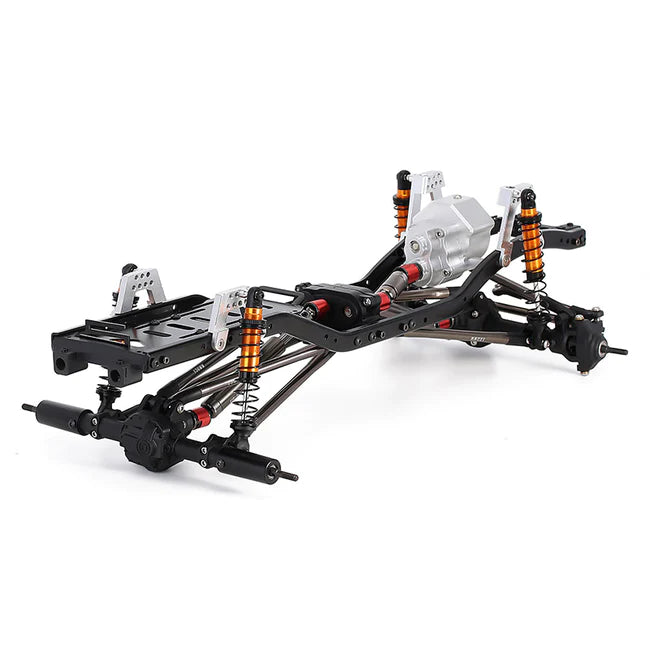

The INJORA 313mm Wheelbase Metal Chassis Frame with Prefixal Single/2-Speed Transmission for 1/10 RC Crawler Car Axial SCX10 90046 is a versatile and customizable option for those looking to upgrade their RC Crawler. You can choose between single-speed or 2-speed transmission of the chassis depending on your preferences. The 2-speed transmission chassis comes equipped with a micro servo for better control. It's compatible with a variety of 313mm wheelbase bodies such as the Axial scx10 ii 90046 90047 jeep cherokee and INJORA Jeep Wrangler bodies.

The chassis is made of high-quality metal and plastic materials, and its smooth transmission system ensures a stable and smooth ride. The prefixal transmission gearbox design makes it easy to mount a Jeep Wrangler body shell. The package includes two metal black/red girder side frames for SCX10 II Jeep Cherokee, and 2pcs 100mm front shocks and 2pcs 90mm rear shocks. The chassis also features 0.7M 15T motor gear, and the gear ratio of transfer case is 1:1.2 for single-speed and 1:1 for 2-speed. The gear ratio of single speed transmission is 1:8, and 2-speed transmission is 1:8 (low gears) 1:4.8 (high gears).

Features:

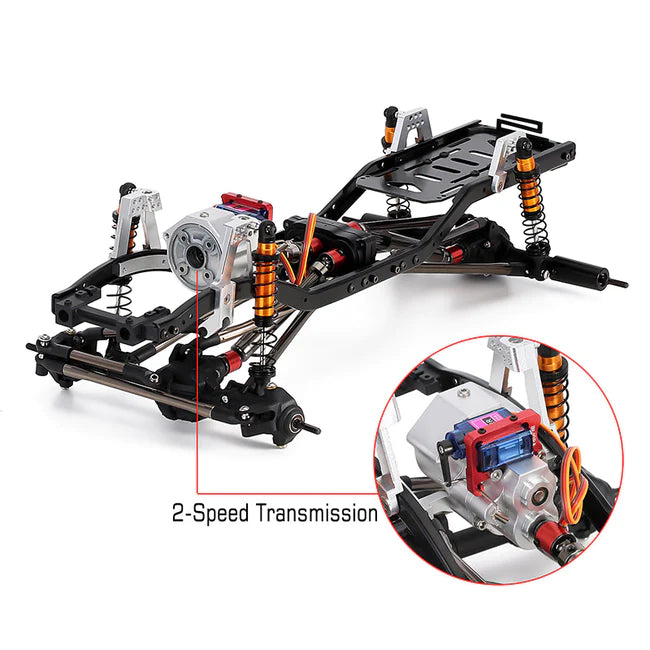

- Single-speed or 2-speed transmission options

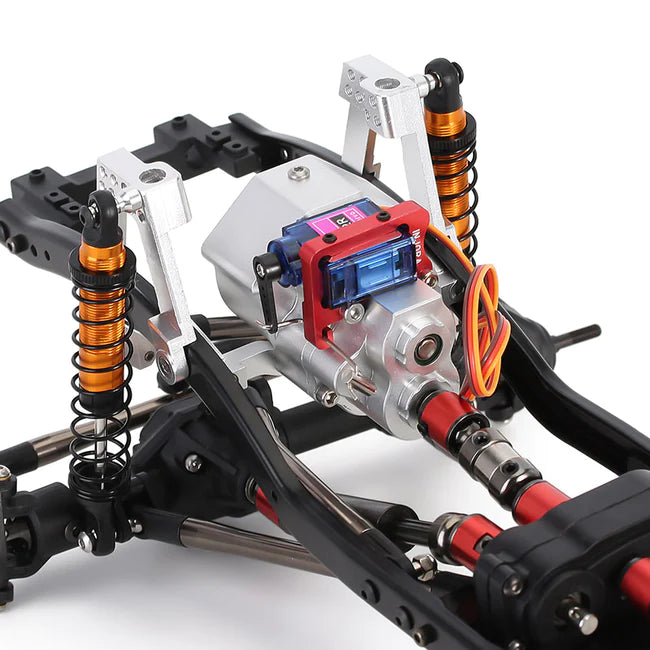

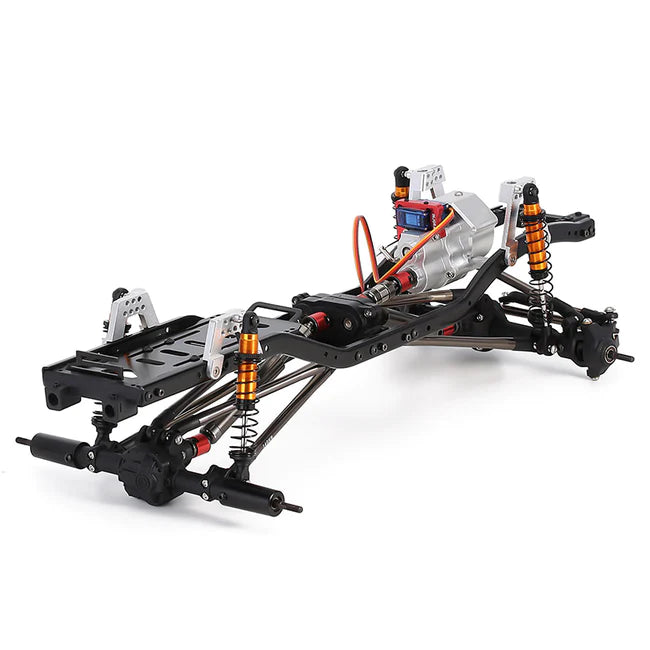

- Equipped with micro servo for 2-speed transmission chassis
- Compatible with a variety of 313mm wheelbase bodies
- Made of high-quality metal and plastic materials
- Smooth transmission system for a stable and smooth ride

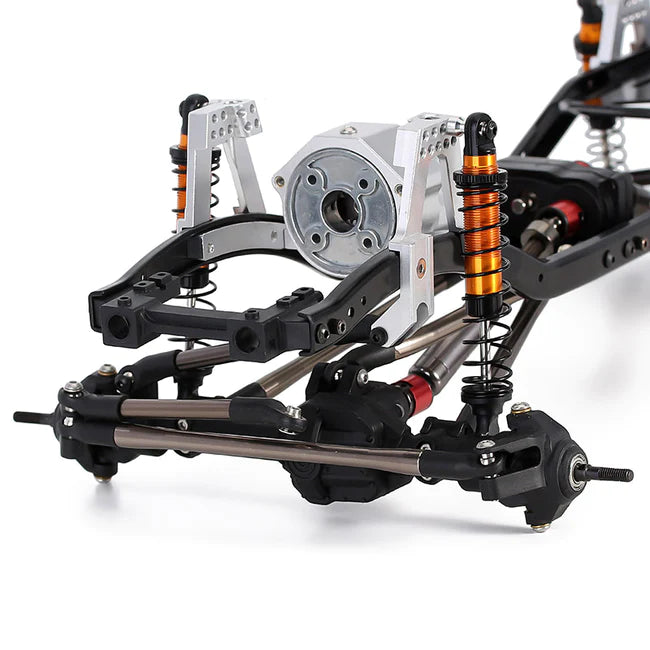

- Prefixal transmission gearbox design for easy mounting of Jeep Wrangler body shell
- Comes with 2pcs metal black/red girder side frames, 2pcs 100mm front shocks and 2pcs 90mm rear shocks

Specifications:
- Material: Metal and Plastic
- Quantity: 1pcs

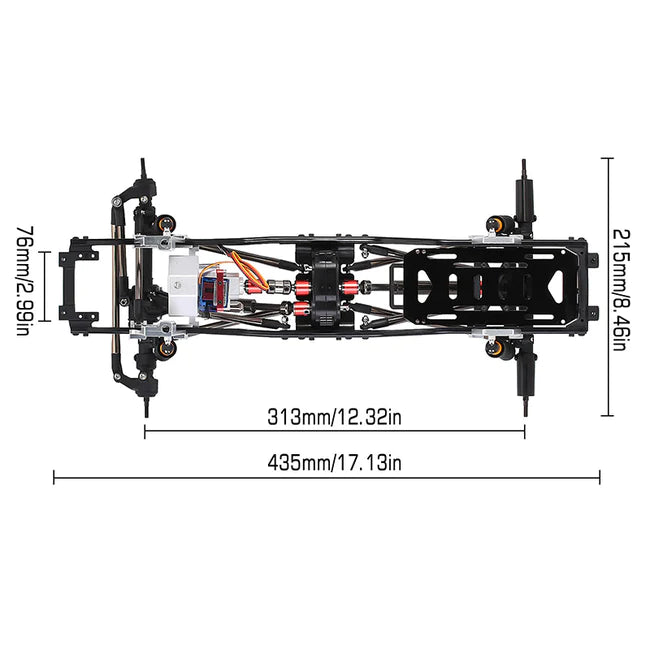

- Weight: 1245g (Single-Speed), 1300g (2-Speed)

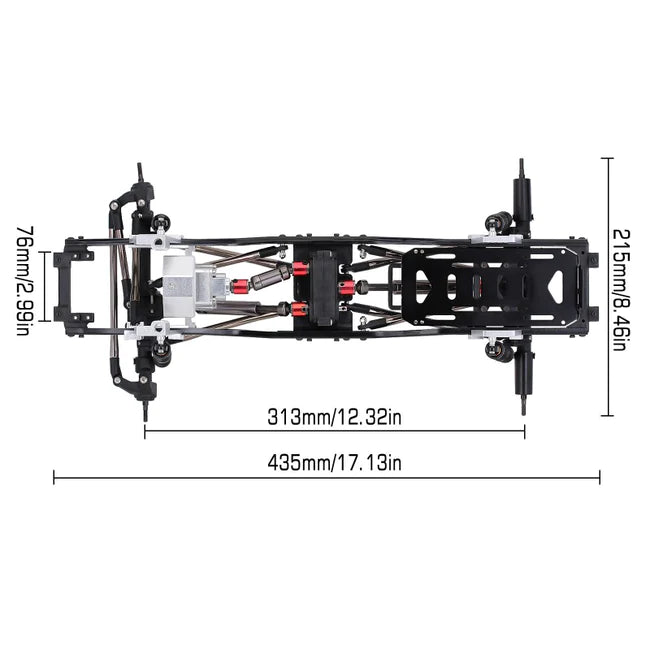

- Length: 435mm / 17.13in
- Frame Width: 76mm / 2.99in
- Axle Width: 215mm / 8.46in
- Wheelbase: 313mm / 12.3in
- Motor Gear: 0.7M 15T
- Gear Ratio of Transfer Case: 1:1.2 (Single-Speed), 1:1 (2-Speed)

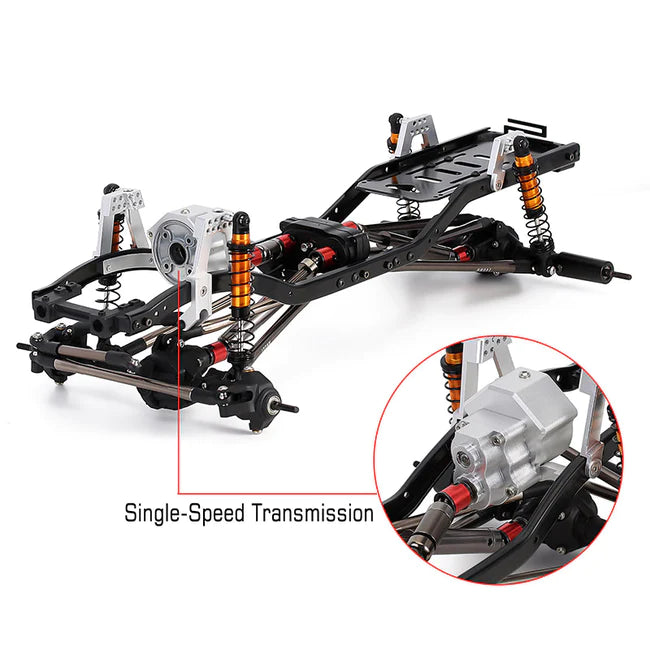

- Gear Ratio of Single Speed Transmission: 1:8
- Gear Ratio of 2-Speed Transmission: 1:8 (low gears), 1:4.8 (high gears)
- Parts included: 2pcs Metal Black/Red Girder Side Frame Chassis for SCX10 II Jeep Cherokee, 2pcs 100mm Front Shocks, 2pcs 90mm Rear Shocks
